Modular System 6060
Illuminate with geometry.
A new standard for 60×60 modular false ceilings.
The 6060 is not a simple light fixture, but an integrated light module, designed to offer a concrete solution
to those who want to transcend the traditional concept of an LED panel.
Its square structure, with two integrated light lines,
allows you to create highly customized environments in commercial settings.
The true innovation lies in its modularity:
each element can be connected to another with extreme ease, thanks to the pre-installed quick connectors.
This system allows for the creation of truly continuous light designs on the ceiling, with a clean and professional aesthetic.
Quick and intuitive connections
The 6060 connection system is designed to optimize installation times and ensure maximum simplicity during installation. Each module is equipped with pre-installed quick connectors (2 input and 2 output), allowing for immediate and orderly assembly in series, without the need for complex wiring or additional operations.
This solution is designed to make interconnection between modules quick, reliable, and perfectly integrated into suspended ceiling systems.
Design freedom,
without interruptions.
without interruptions.

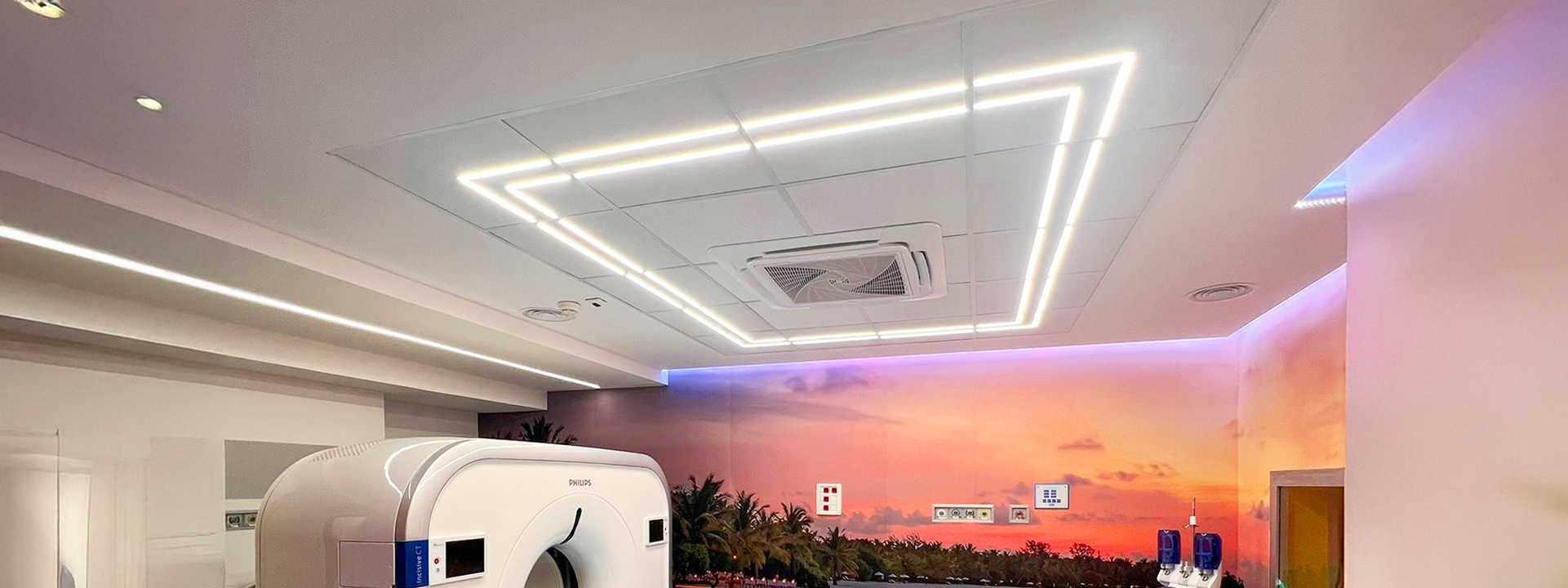

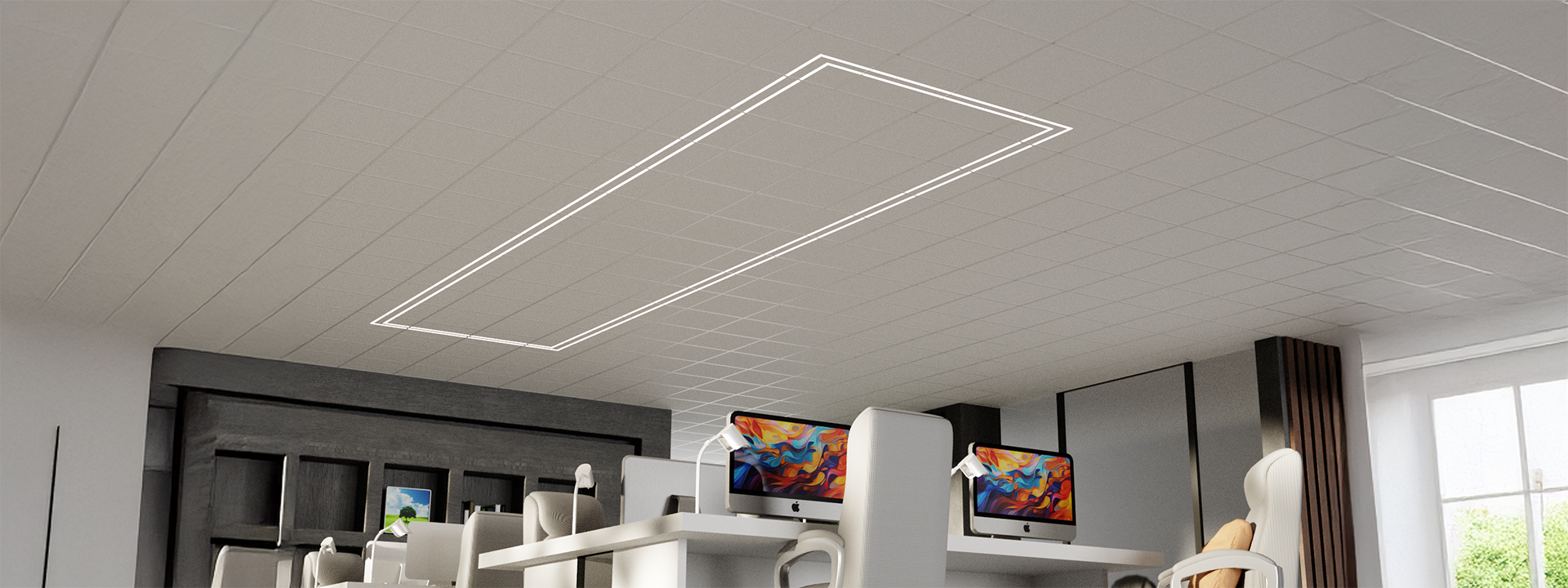

Thanks to the two available versions of the 6060, with straight or right-angled light lines, it is possible to create continuous and customized lighting configurations, perfect for following the architectural lines of the suspended ceiling.
The combination of modules allows the creation of articulated, geometric, or linear light lines, always maintaining aesthetic consistency, luminous uniformity, and ease of installation.

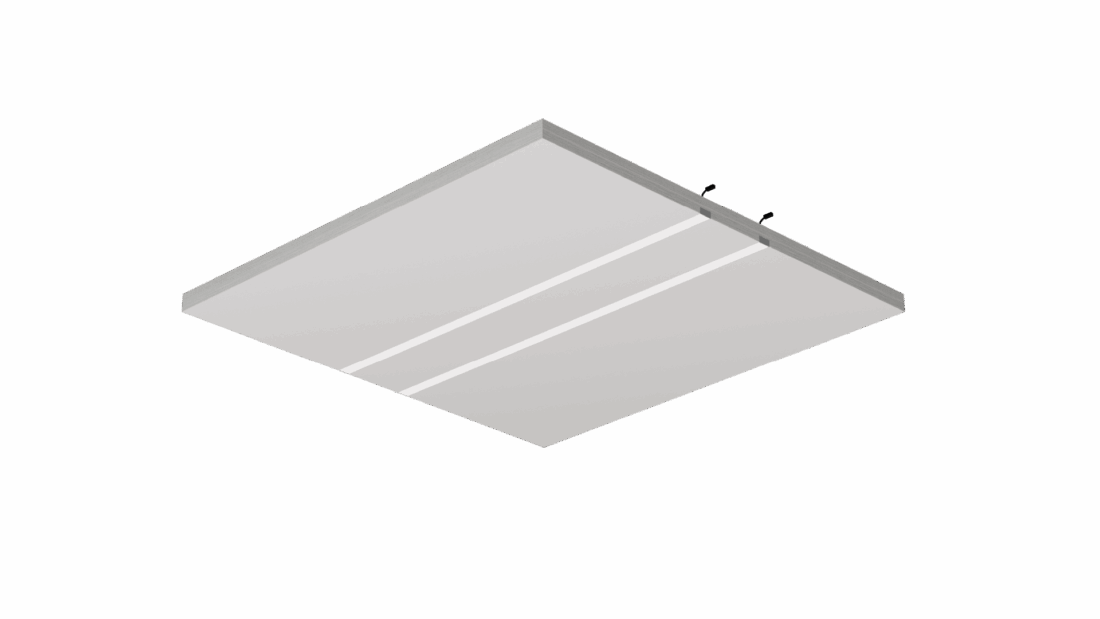

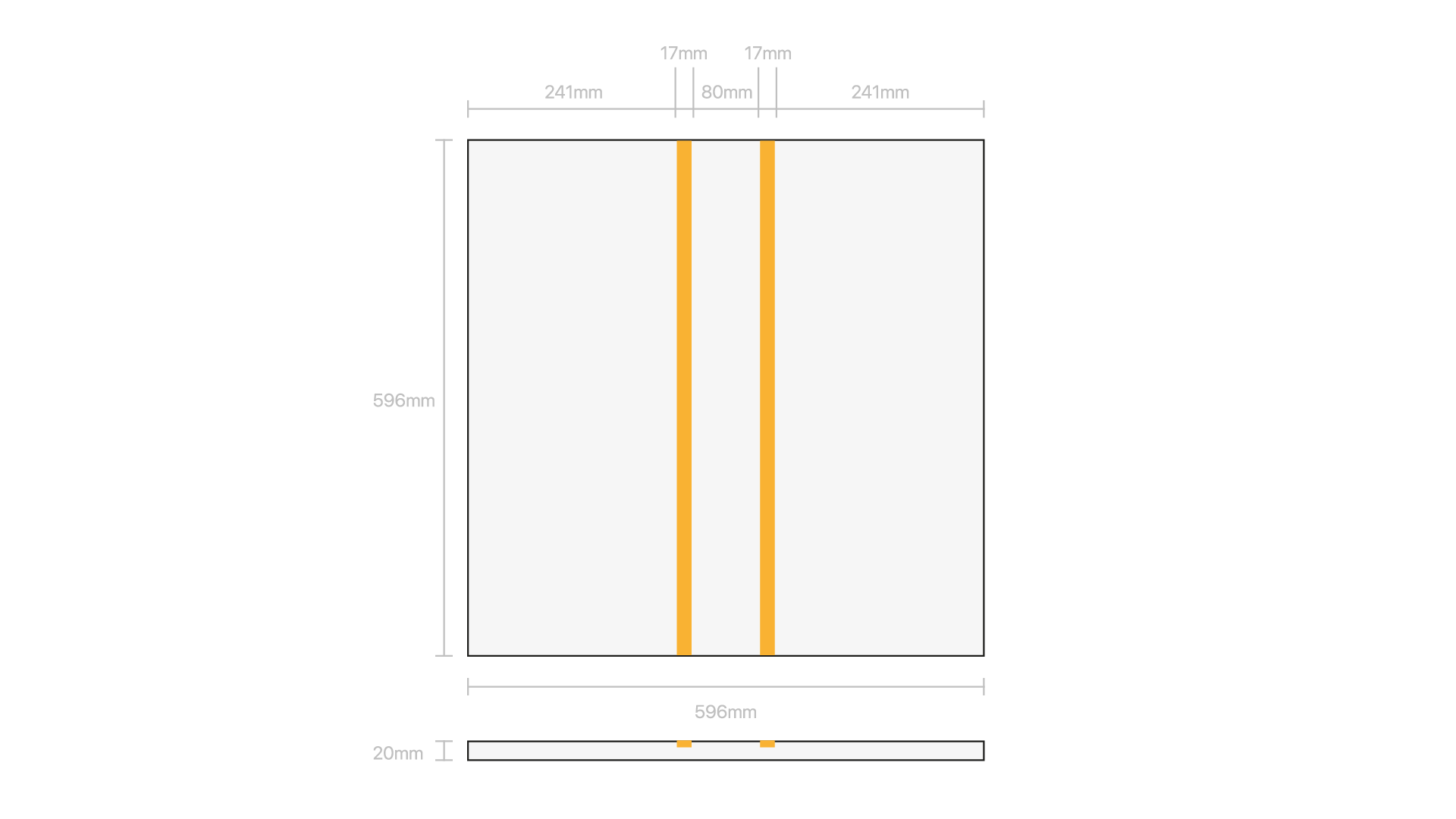

Modulo 6060
The Modulo 6060 is a square plasterboard module designed with two parallel LED lines for clean, continuous linear lighting.
Designed for ceiling installations, it is ideal for creating simple yet impactful lighting geometries.
This product is equipped with 4 quick connectors (2 input and 2 output), allowing direct connection between multiple 6060 modules. This system allows for the creation of lighting configurations, perfect for architectural environments where lighting becomes an integral part of the visual design.
- Possibility to dye it on the spot with the desired colour.
- Weight: 5.4 Kg.
- Max modules that can be connected in series: 3 modules with a power supply.
Download
| Code | IP | Power | Temp. | Lumen | DC |
|---|---|---|---|---|---|
| 6060/X2/LBH | 20 | 25W | 2700K | 2420 | 24V |
| 6060/X2/LBC | 20 | 25W | 3000K | 2549 | 24V |
| 6060/X2/LBN | 20 | 25W | 4000K | 2617 | 24V |
| 6060/X2/LBI | 20 | 25W | 6000K | 2682 | 24V |
| 6060/X2/RGB | 20 | 25W | RGB | 1037 | 24V |

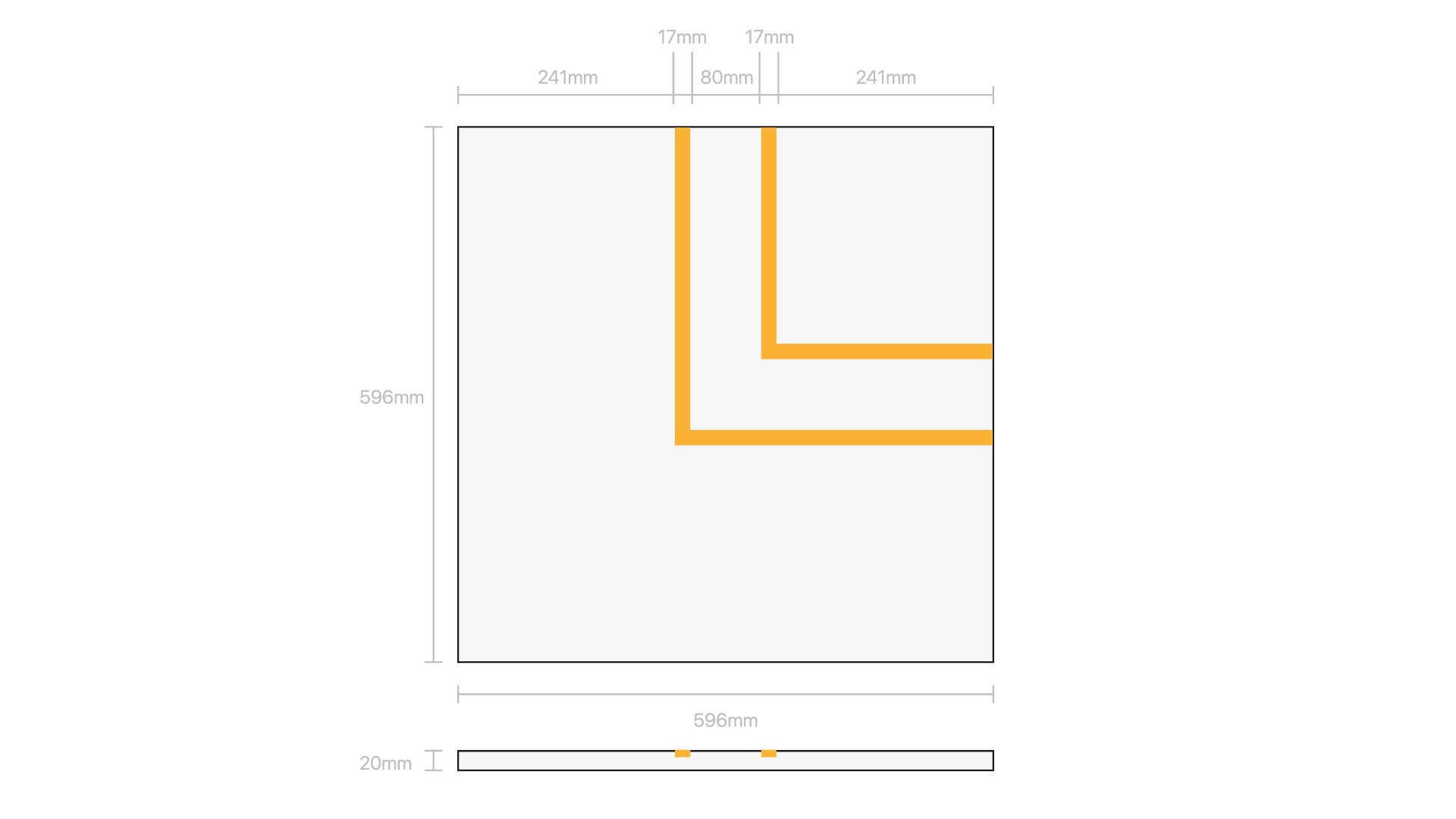

Modulo 6060 C

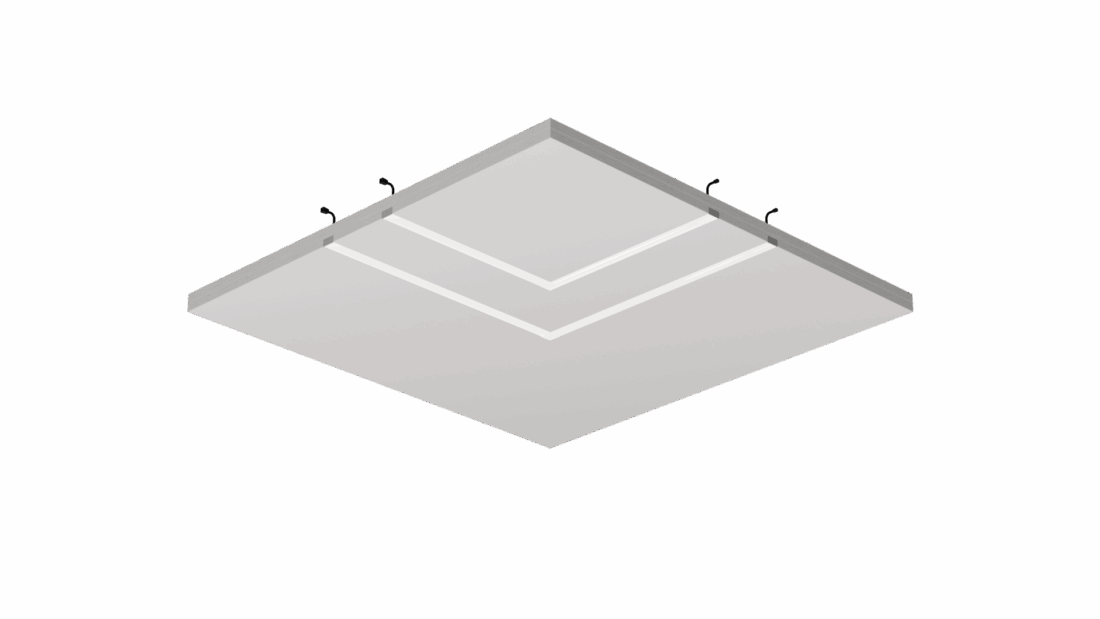

The Modulo 6060 C is the variant with two LED lines arranged at 90°, designed to create luminous angles in the project. The plasterboard structure allows for invisible integration into the ceiling, maintaining a minimal architectural effect.
This product is equipped with 4 quick connectors (2 input and 2 output), allowing direct connection between multiple 6060 modules. This system allows for the creation of lighting configurations, perfect for architectural environments where lighting becomes an integral part of the visual design.
- Possibility to dye it on the spot with the desired colour.
- Weight: 5.4 Kg.
- Max modules that can be connected in series: 3 modules with a power supply.
Download
| Code | IP | Power | Temp. | Lumen | DC |
|---|---|---|---|---|---|
| 6060/X2/LBH/C | 20 | 25W | 2700K | 2420 | 24V |
| 6060/X2/LBC/C | 20 | 25W | 3000K | 2549 | 24V |
| 6060/X2/LBN/C | 20 | 25W | 4000K | 2617 | 24V |
| 6060/X2/LBI/C | 20 | 25W | 6000K | 2682 | 24V |
| 6060/X2/RGB/C | 20 | 25W | RGB | 1037 | 24V |

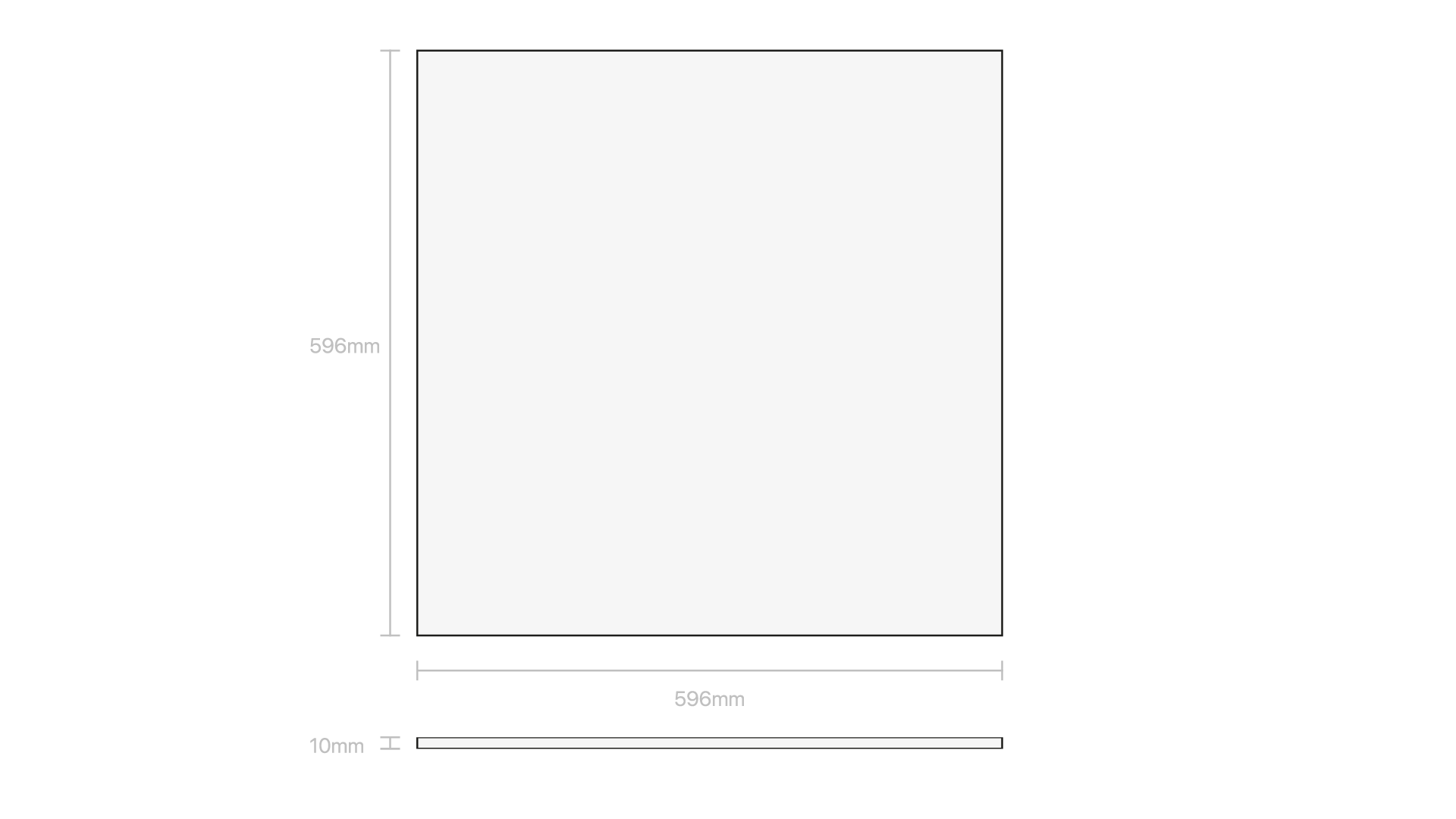

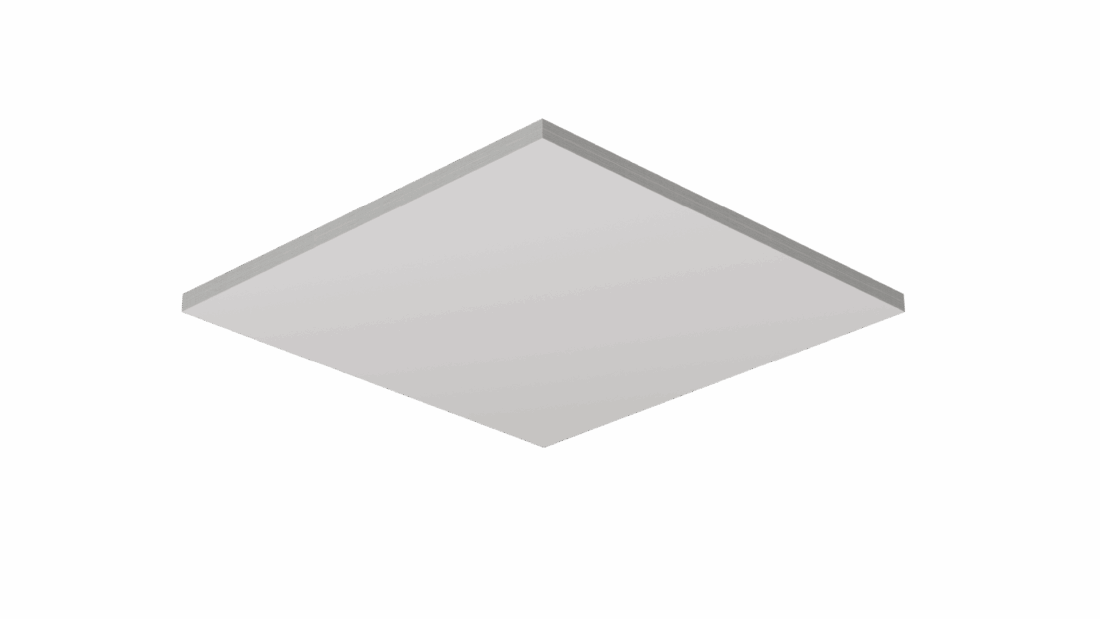

Modulo 6060 Blind

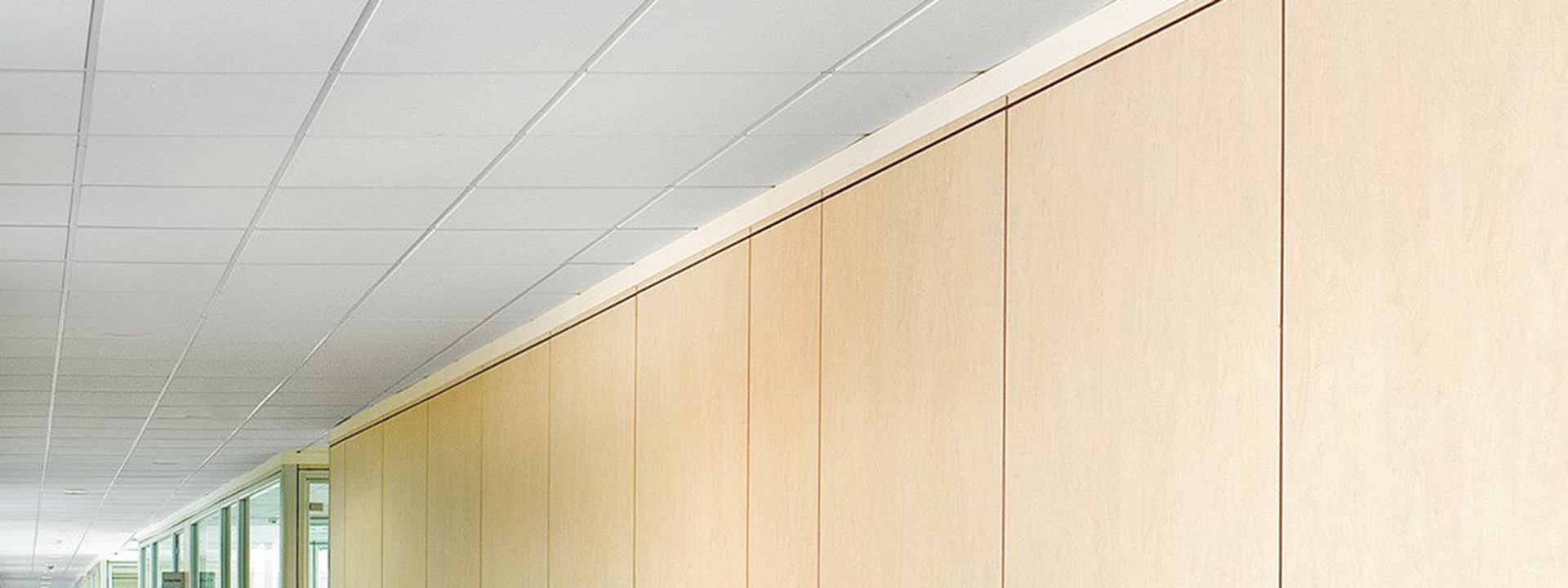

The 6060 Blind Module is the complementary element of the 6060 series, designed to ensure aesthetic continuity and visual uniformity in plasterboard false ceilings. Unlike the light modules in the same range, this component does not emit light, but rather precisely replicates the shape, dimensions, and materials of the active elements, allowing installation to be completed even in areas where lighting is not required.
Its function is to discreetly and coherently cover unused areas of the false ceiling, maintaining the modularity and harmony of the entire project.
- Possibility to dye it on the spot with the desired colour.
- Weight: 2.7 Kg.
Download
| Code | IP |
|---|---|
| 6060 | 20 |
