Those who specify the LEDCO PIXEL system know that precision is non-negotiable. PIXEL is designed for environments where every detail matters — and lighting control is no exception. With the PIXEL DALI2 version, the system integrates natively into professional automation protocols, with no compromise on light quality.
PIXEL DALI2: a complete system, ready to install
PIXEL DALI2 is supplied complete with its DALI driver in the box: no additional components to source or order separately. The driver is pre-selected and matched to the luminaire, ensuring certified compatibility between driver and light source.
Technical specifications of the included driver:
— Supply: AC 220V — Power consumption: 16W — Output current: 100–450 mA — Output voltage: 2.5–42 Vdc
This output flexibility allows precise management of the LED operating point, adapting to project requirements and delivering stable, flicker-free dimming across the full range.

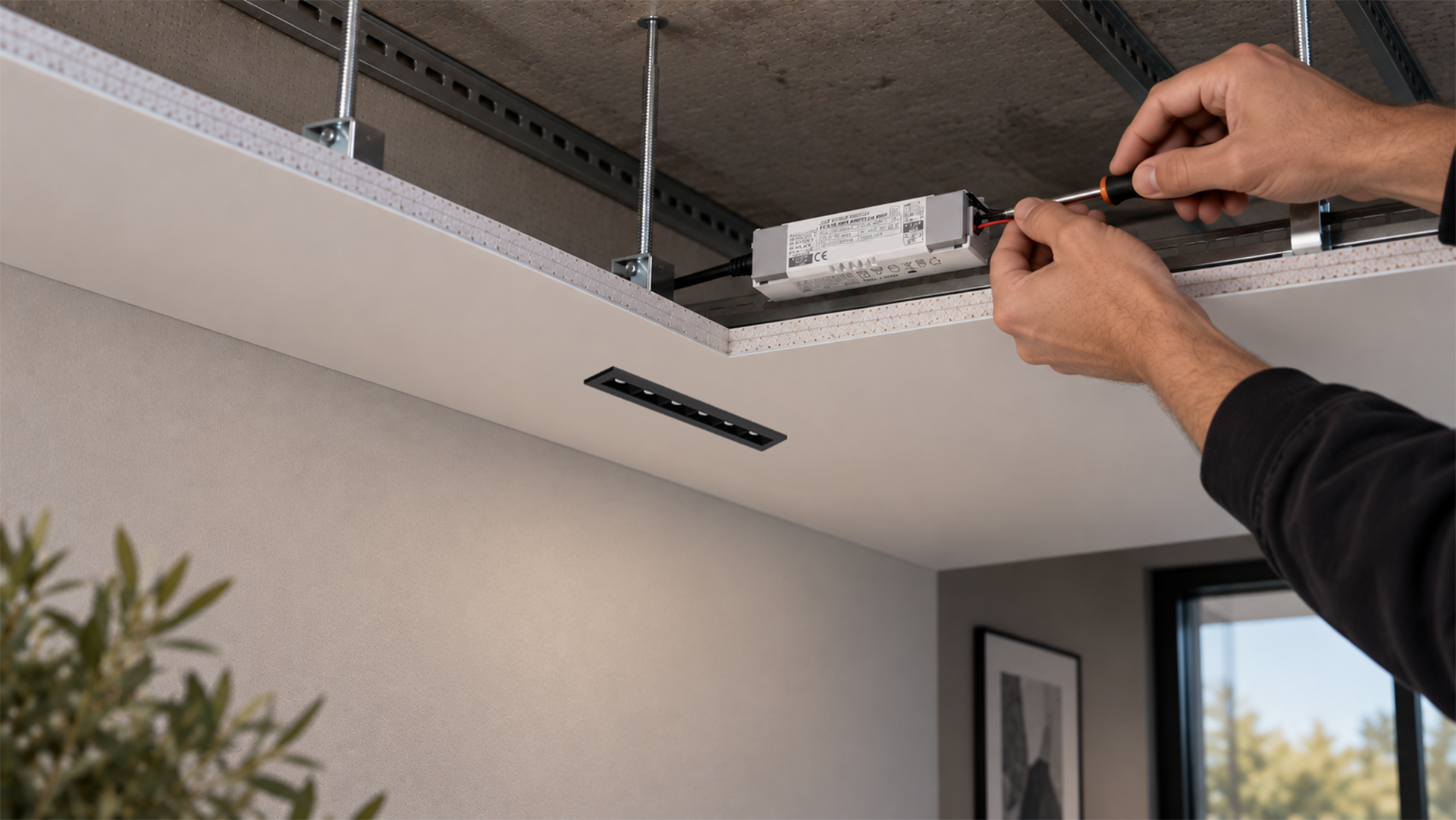

Remote mounting: a design consideration, not a constraint
The DALI driver supplied with PIXEL has larger dimensions than the standard driver and is not compatible with passage through the luminaire’s installation aperture. Remote mounting of the driver is therefore recommended.
At the design stage, this should be factored into the electrical layout: the driver will need to be positioned in an accessible location — ceiling void, service riser or technical enclosure — with cabling sized accordingly. This is a well-established approach in professional installations, has no impact on system performance, and ensures full accessibility to the driver for any future maintenance.
Why specify PIXEL DALI2
The DALI2 protocol enables individual control of every single luminaire: each PIXEL is assigned a unique address and can be dimmed independently, grouped into lighting scenes, and integrated with BMS or KNX platforms. Bidirectional communication also enables real-time monitoring of driver status — an increasingly specified requirement in hotel, museum and high-end corporate projects.
PIXEL DALI2 is the right choice for designers working on installations where granular light control is not an add-on, but a core component of the project brief.
Would you like to explore what the PIXEL DALI2 system can deliver for your next project?
Get in touch: our technical team is available for dedicated consultancy.
